Leírás

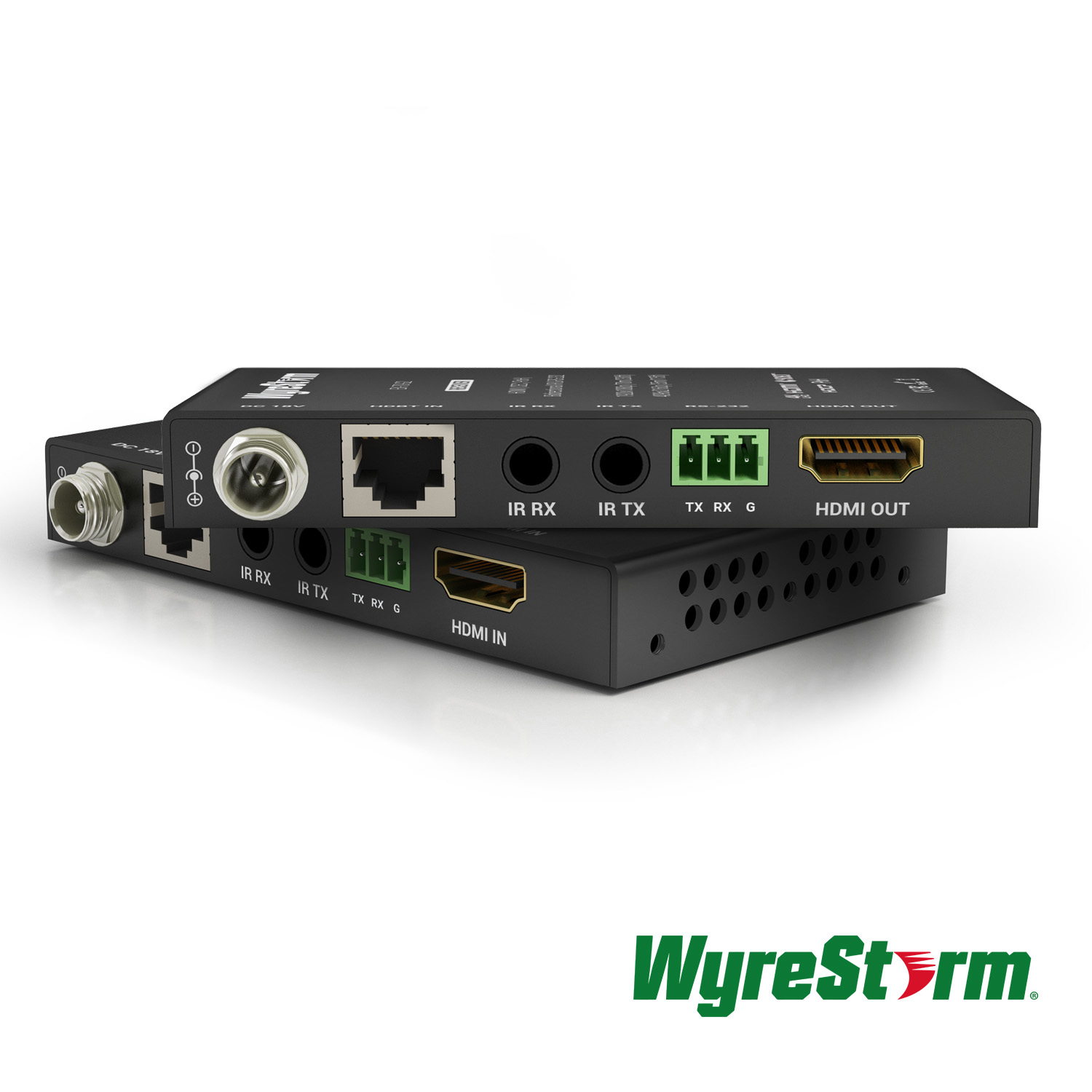

4K HDMI extender set capable of transmitting AV content over medium distances using a single category cable HDBaseT™ Class B transmission supporting 1080p up to 70m/230ft 4K UHD transmissions up to 4096x2160p 60Hz 4:2:0 8bit also supported up to 35m/115ft 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos 2-Way PoH allowing TX or RX to be remotely powered from either end for flexible installation options Bidirectional IR pass-through Bidirectional RS-232 pass-through Supports CEC communication between devices* Automatic EDID Management (copy from RX-TX) Low profile 15mm chassis allows quicker, easier installation behind flush-mounted screens Threaded bushings allow use of both standard and locking DC power plugs Visual LED indication for power supply to units, signal status to show established display connection, HDCP presence and HDBaseT™ link between devices Cable termination follows IEEE-568B standards Energy efficient universal power supply included
