Termék adatlap (PDF)
Leírás

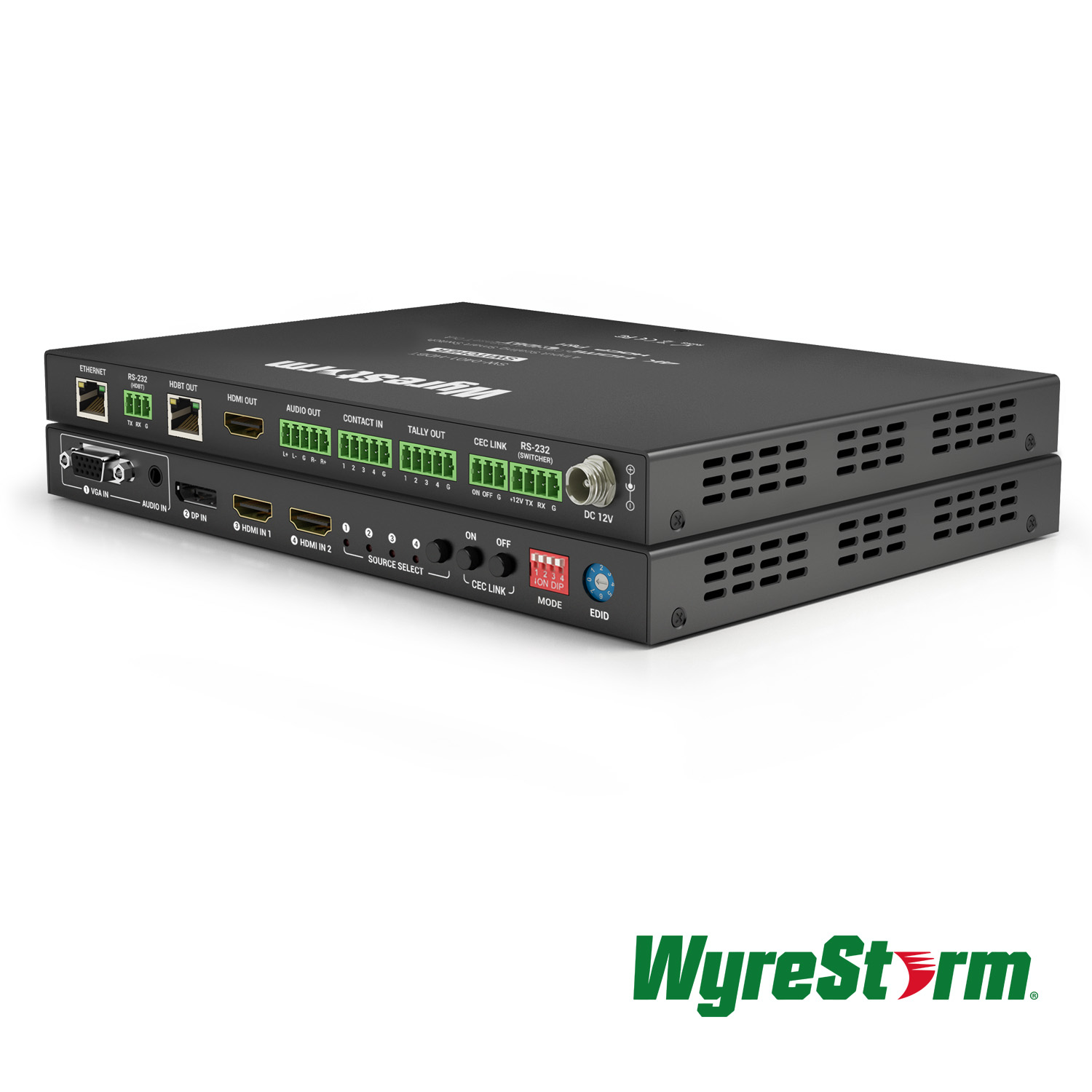

4-input smart presentation switch with dual, scaled outputs Mirrored HDMI out with up to 4K@30Hz scaler and balanced audio output Class A HDBaseT for transmission of 4K video, audio, Ethernet, power and control signals Supporting transmissions distances of 4K/30Hz to 70m/230ft and 1080p to 100m/328ft CEC controller built in to turn on/off sink device by auto-detecting source status Automatically switches between VGA, DisplayPort and two HDMI inputs 1x VGA+3.5mm stereo up to 1920x1200@60Hz, 1x DisplayPort and 2x HDMI inputs up to 3840x2160@30Hz Mirrored HDMI and HDBaseT outputs scales output to 4K DIP switch provided to adjust automatic or manual switching mode Rotary switch provided to adjust between auto-scaler and forced output resolutions RS-232, front panel and CC control (+ LED) of switching Contact closure points provided to switch sources or turn on/off sink device Auto-switching based on power state and last connected source - switches to the latest source when all inputs are connected or any input disconnected PoH HDBaseT output powers RX-70-4K or RX-70-4K-ARC receivers at screen or projector location Active CEC technology ensures display devices are in correct power state depending if sources are being used
