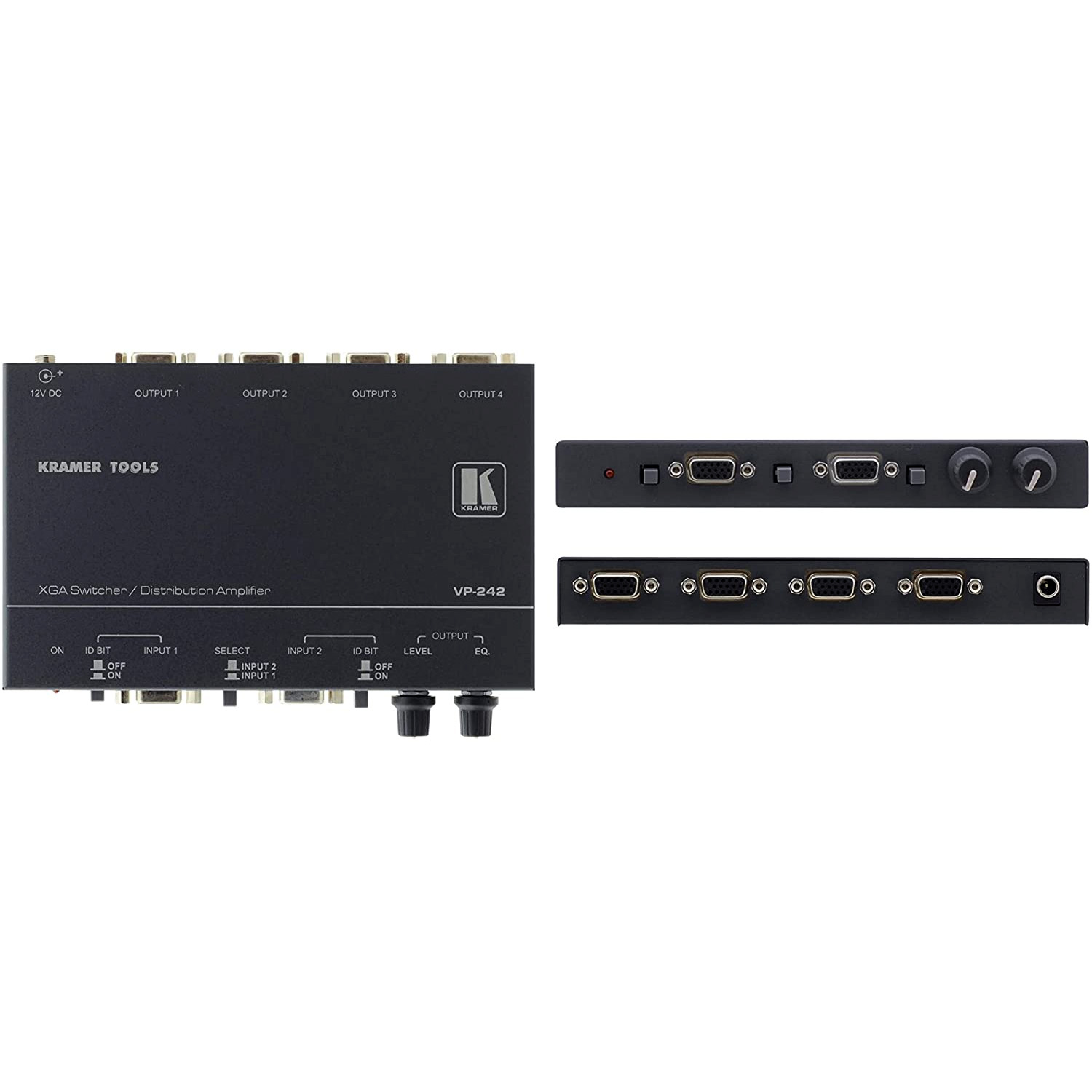

INPUTS: 2 VGA/UXGA on 15-pin HD (F) connectors.
OUTPUTS: 4 VGA/UXGA on 15-pin HD (F) connectors.
MAX. OUTPUT LEVEL: 2.5Vpp/75Ω.
BANDWIDTH (-3dB): 420MHz.
DIFF. GAIN: 0.05%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: 0.05%.
S/N RATIO: 73dB.
CROSSTALK: -61.5dB @5MHz.
CONTROL: Level: -1 to +6dB; EQ.: 0 to +8dB @5MHz.
COUPLING: DC.
POWER CONSUMPTION: 12V DC, 100mA.
DIMENSIONS: 19cm x 13.5cm x 2.5cm (7.5" x 5.3" x 0.98") W, D, H.
WEIGHT: 0.6kg (1.32lbs) approx.
INCLUDED ACCESSORIES: Power supply.
