Leírás

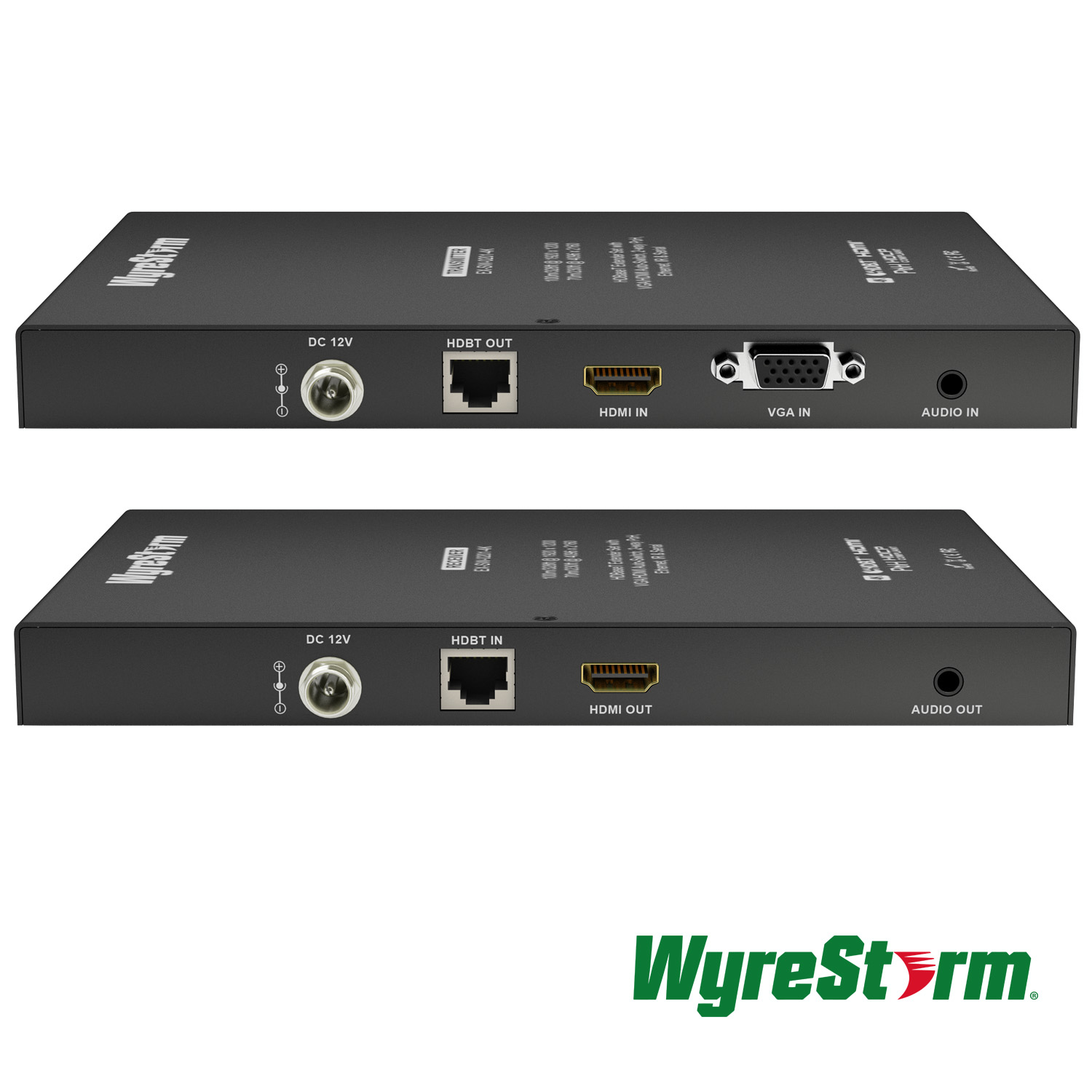

A full-featured HDBaseT™ extender set with the added feature of a VGA/HDMI auto-switching transmitter Transmit HD resolutions up to 1920x1200 to 100m/328ft Transmit 4K@60Hz (4096x2160) to 70m/230ft HDCP 2.2 compliant 3D supported Auto-switching transmitter detects and selects VGA (+audio) and HDMI devices as soon as the source is connected 2-way PoH gives flexible installation options by allowing either the transmitter or receiver to be powered remotely Audio embed on transmitter and audio de-embed on receiver via 3.5mm jack connection for HDMI or VGA EDID management and DIP switch selection for manual setting of resolution, RS-232 control/firmware update function and long cable mode Low-profile 18mm chassis for unobtrusive installation Cable termination follows IEEE-568B standards LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link. Threaded bushings allow use of both standard and locking DC power plugs Energy efficient universal power supply included Mounting brackets included
